Zephyr III

Home > Products > Dust Collectors > Zephyr III

Zephyr III PDF

• Part #: 218143001
• Manufacturer: Camfil
• Manufacturer Part #: 218143001

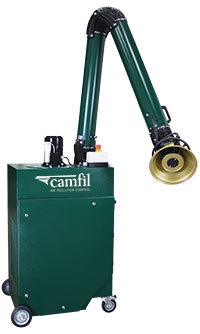

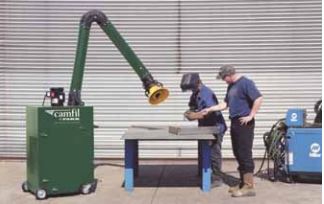

Portable Air Cleaner for capturing welding fumes and dusts such as grinding, soldering fumes and other airborne particles.

Standard Features & Benefits:
• Complete unit–just plug it in and you’re collecting dust and fumes.
• Roll out dust drawer.
• Quick clamp cartridge sealing/removal
• Exterior arm adjustments
• Heavy duty fume arm is obstruction free inside
• Easy, 360º hood positioning.
• 1200 m3/h at the capture hood.
• Three stage filtration:
     • Primary spark trap
     • Gold Cone® HemiPleat®
     • Carbon after filter for ozone only
• Large wheels with swivels and brakes for ease in moving and positioning.
• Tough powder coated surface finish inside and outside.
• Venturi assisted pulse cleaning, manually activated.
• Dust drawer grid minimizes dust re-entrainment.
• 110v/ 1ph/ 50 Hz, 1.1 kW motor
     • (16 amp circuit required) - UK
     • 400v/ 3ph/ 50 Hz, 1.5 kW motor - Europe
• Thermal overload in motor starter switch.
• 7.5 m extension cord.
• The only thing you need to supply is the electrical feed and compressed air line.

Contact us for pricing »
